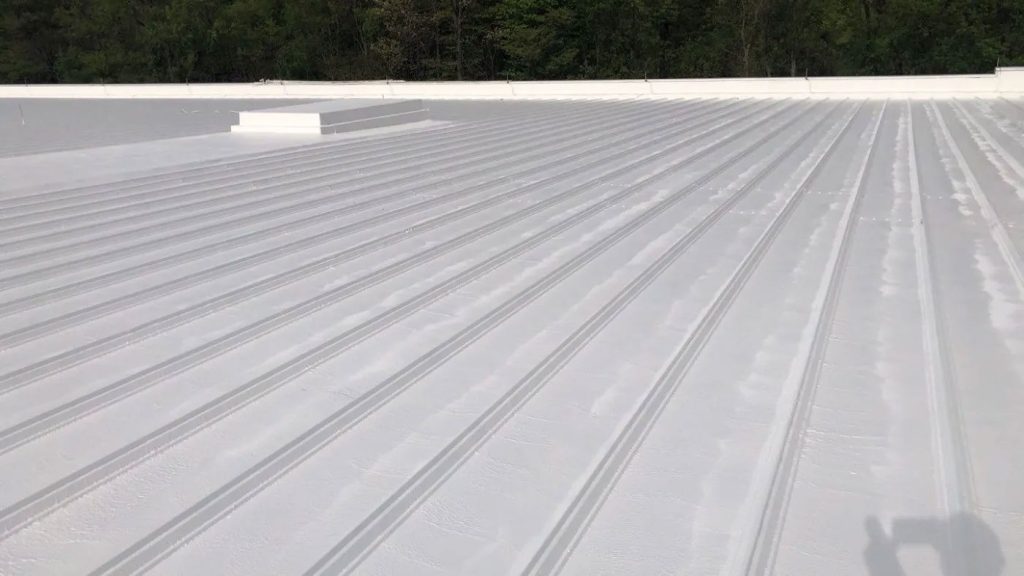

Seamless Metal Roof Restoration System - Tarentum, Pennsylvania

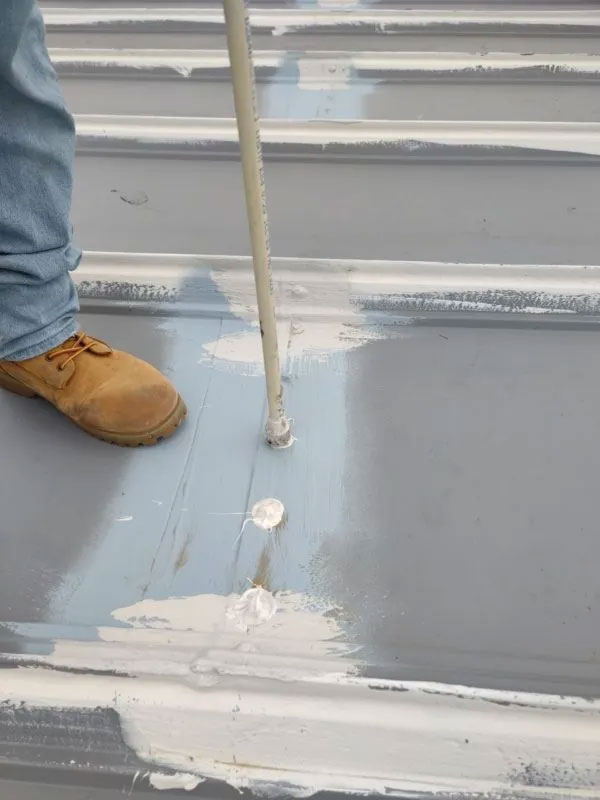

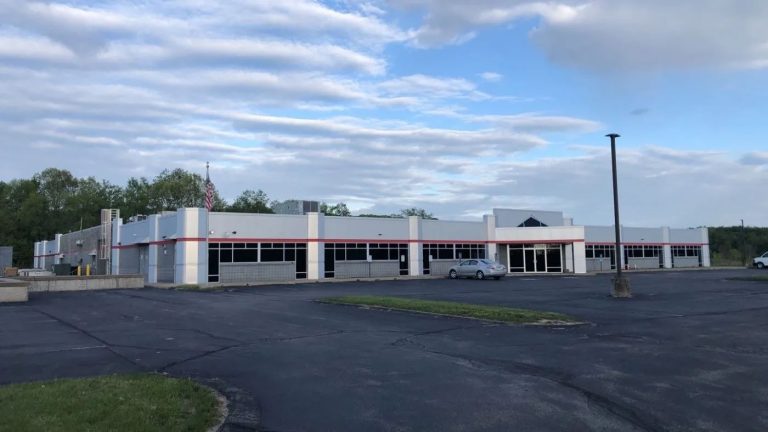

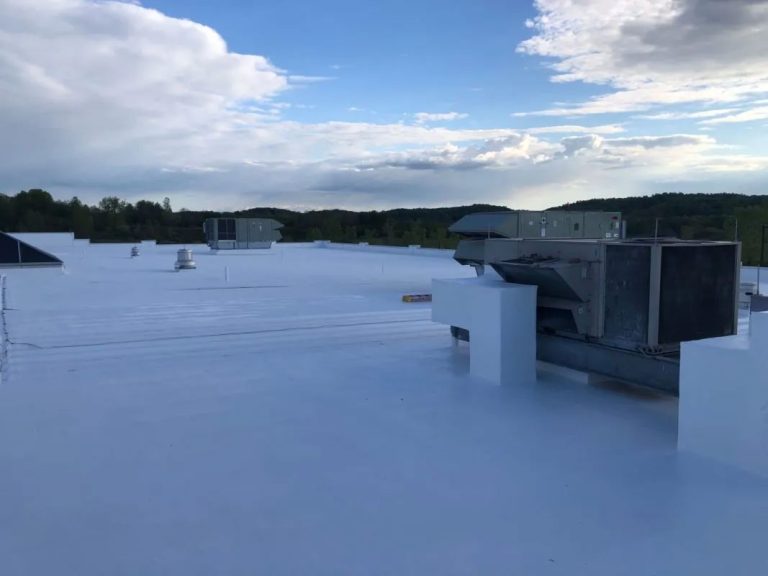

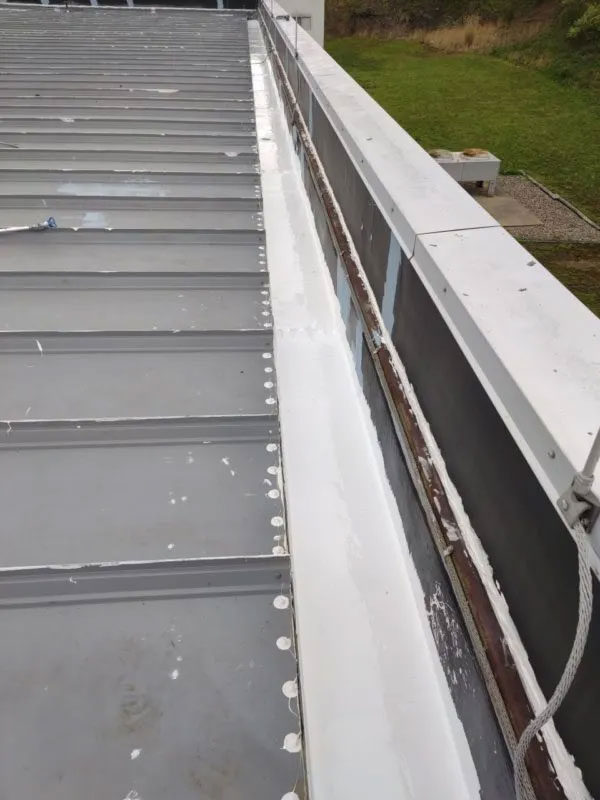

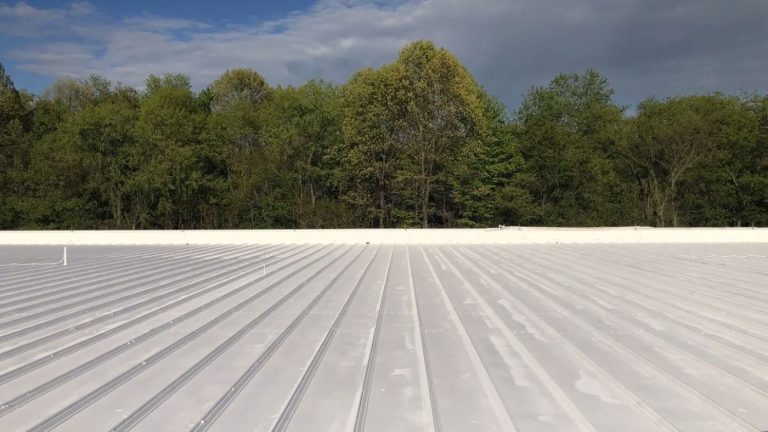

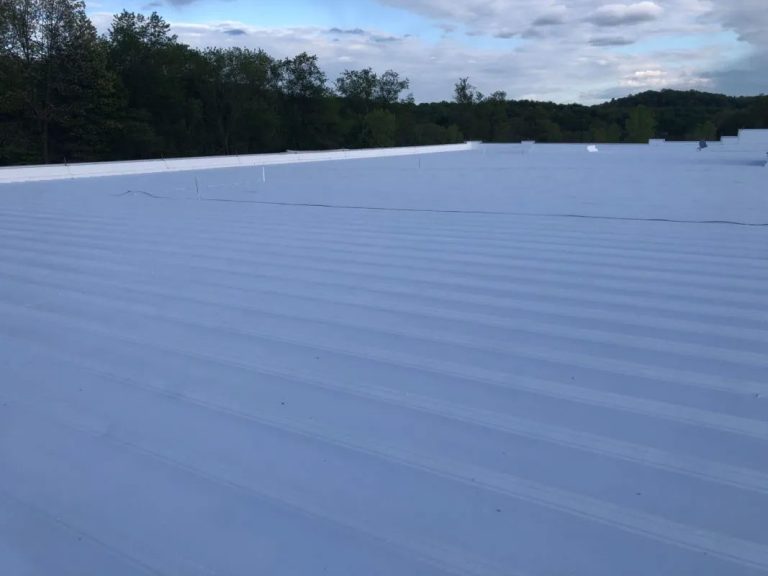

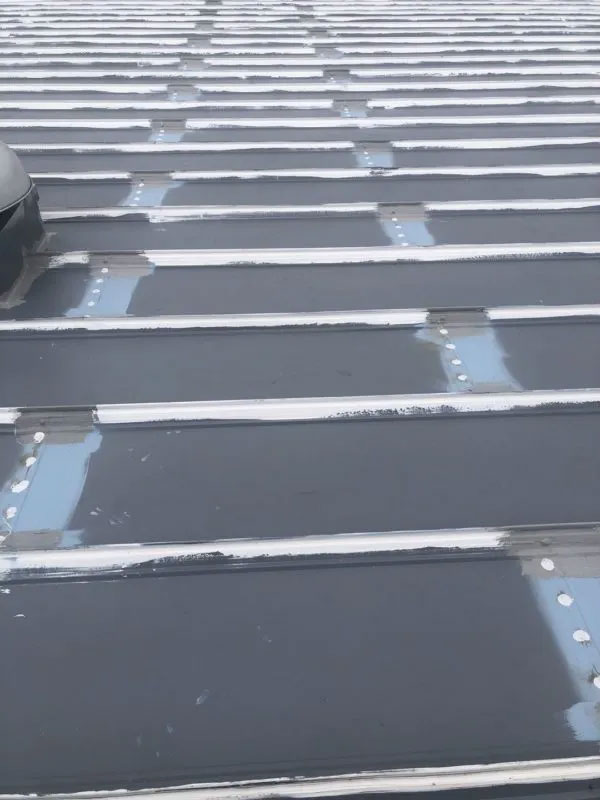

Seamless Metal Roof Restoration System – Tarentum, Pennsylvania

On this commercial project, the existing roof was fully prepared with attention to detail and function for a seamless metal roof restoration system. Pressure washing, sealing all of the fasteners and rib crimp, and then embedding fabric in the base coat over EPDM. In this way, the existing roof was fully prepared for installing a seamless metal roof restoration system.

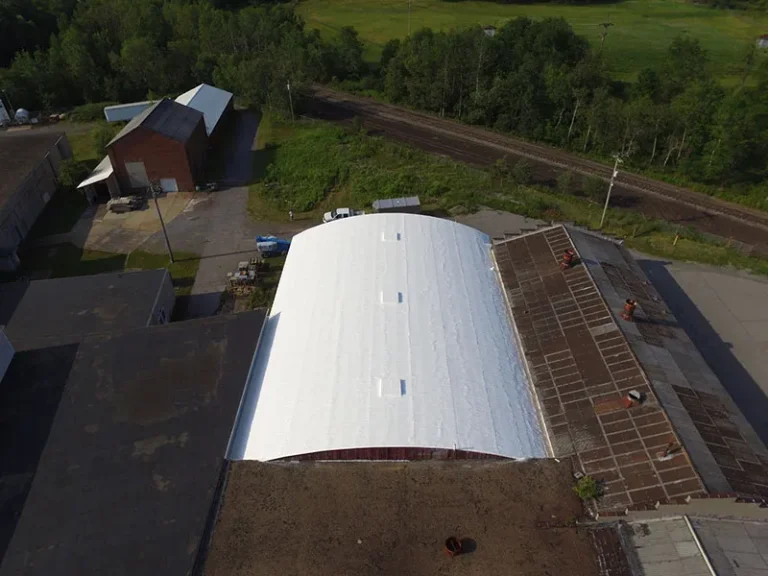

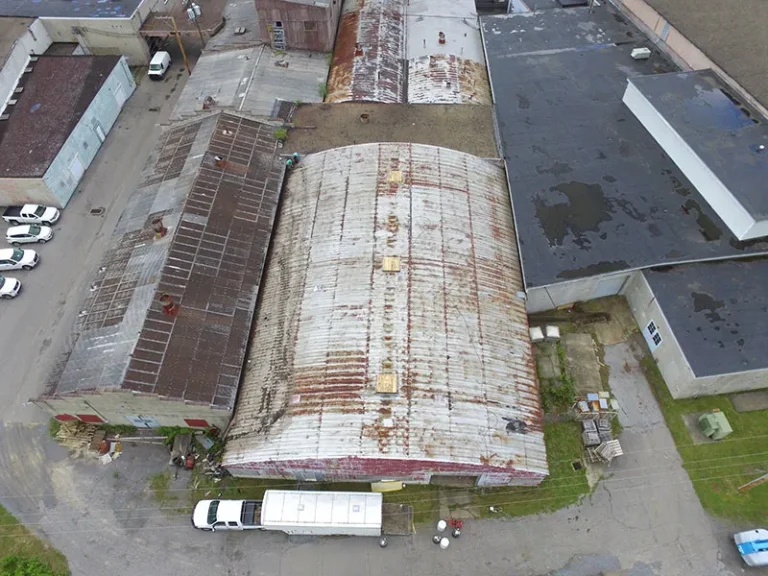

SPF Roof System on Quonset Hut Metal Roof in St. Mary’s, PA

We applied Conklin’s Sprayed Polyurethane Foam (SPF) System over the existing Quonset hut-style metal roof. We started with an 1″ of closed cell roofing foam, followed by a base coat/primer, and finished with an acrylic top coat. We also waterproofed the gutters with Conklin’s polyurethane coating, Affinity®. This restored roof has seamless waterproofing, monolithic insulation, and 85% reflectivity, with a renewable 10-year warranty!

SPF System on EPDM Roof in New Castle, PA

Over this existing commercial EPDM roof for Lawrence County Eye Associates, in New Castle, Pennsylvania, we fastened EPDM with screws and plates, applied an 1″ of closed cell roofing foam, followed by an acrylic base coat, and finished with a white modified acrylic top coat. This installed Conklin Sprayed Polyurethane Foam (SPF) System is 85% reflective and has a 18-year renewable warranty!

Metal Restoration System on Commercial Metal Roof in New Brighton, PA

On this commercial ribbed metal roof for the nonprofit Lighthouse for the Blind, we cleaned and primed existing metal. Then we reinforced all seams with fabric embedded in base coat, sealed all screw heads, and applied a 85% reflective white modified acrylic top coat. A side addition had an existing EPDM roof with torn membrane and buckling roof panels. We framed up rafters for a new sloped roof, sheeted them, and added a Fabric-Reinforced system. The completed project is covered by an 18-year renewable warranty!

Single-Ply Flexion (PVC) System replacing TPO Single Ply Roof in Indiana, PA

We installed Conklin’s single-ply Flexion (PVC) System in place of the existing TPO roof. We removed the TPO membrane, built up ponding areas with roof foam, put down a slip sheet, installed 60-mil Flexion (PVC) mechanically, and heat-welded the seams. This system has a 20-year non-prorated warranty!

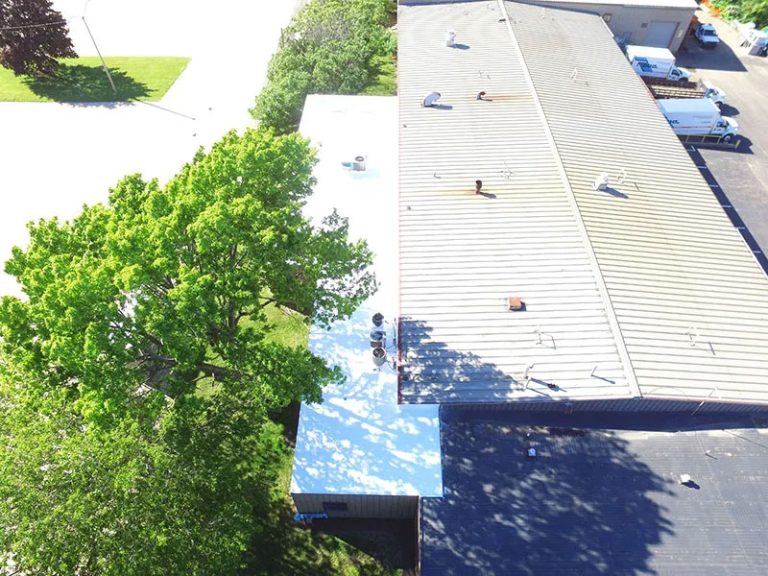

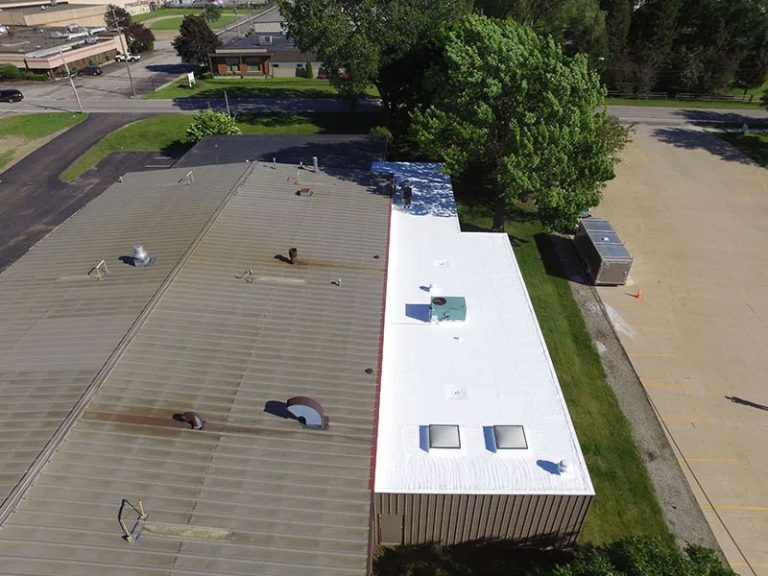

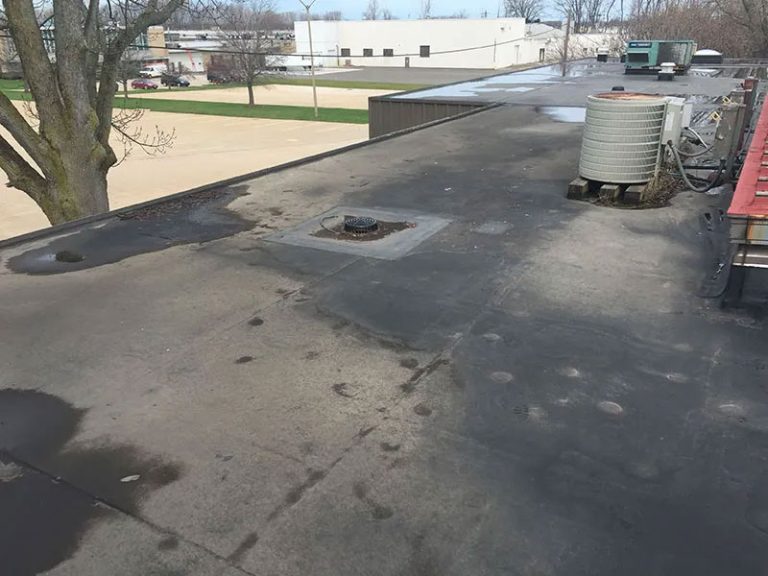

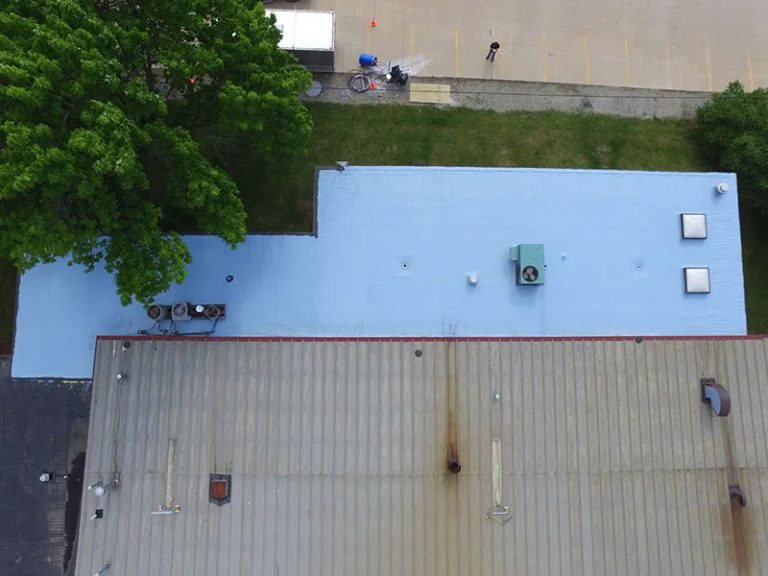

Fabric-Reinforced System over EPDM Roof in Erie, PA

We installed Conklin’s Fabric-Reinforced System on this existing EPDM roof at Rabe Environmental Systems in Erie. All ponding areas were built up with roof foam prior to installing the system. EPDM was washed, cleaned, primed, and all seams reinforced with fabric embedded in base coat. Then fabric embedded in base coat was applied over the entire roof, followed by a 85% reflective white top coat. This system has a 18-year non-prorated renewable warranty!

Flexion System replacing Ballasted EPDM Roof in Altoona, PA

On this ballasted EPDM roof, we removed the ballast and installed Conklin’s single-ply Flexion System, which uses a Polyvinyl Chloride (PVC) 60-mil membrane, using a slipsheet between EPDM and PVC. Instead of the concrete pavers in the picnic area, we laid down walkway pads. The finished roof has a 20-year non-prorated warranty.

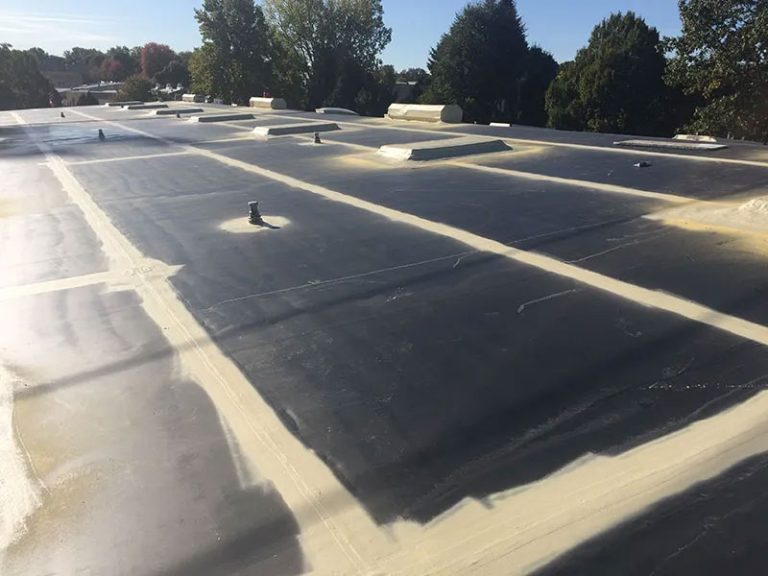

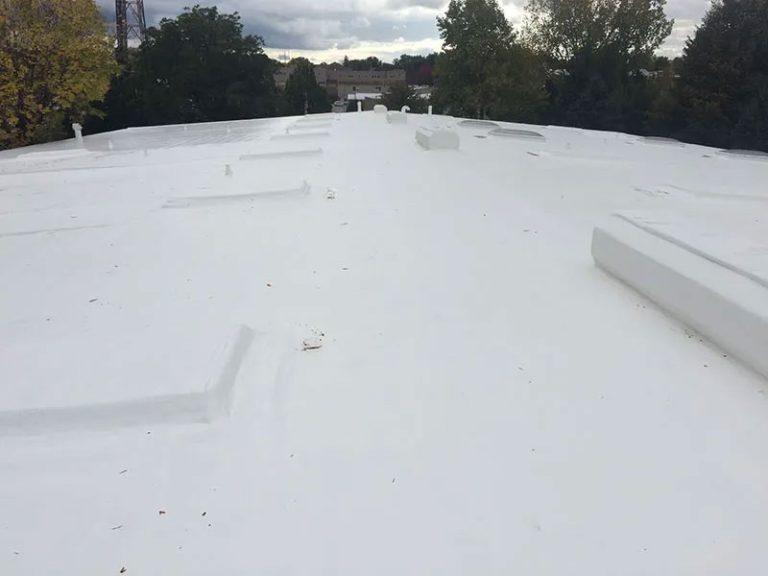

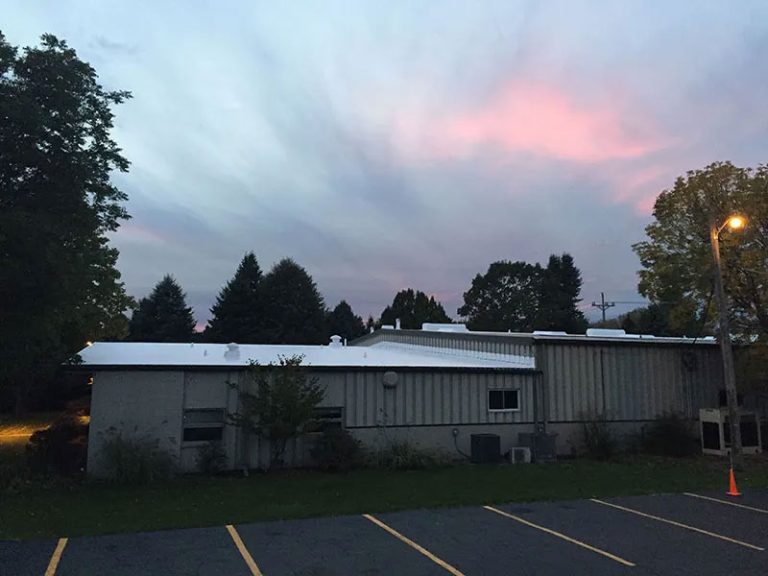

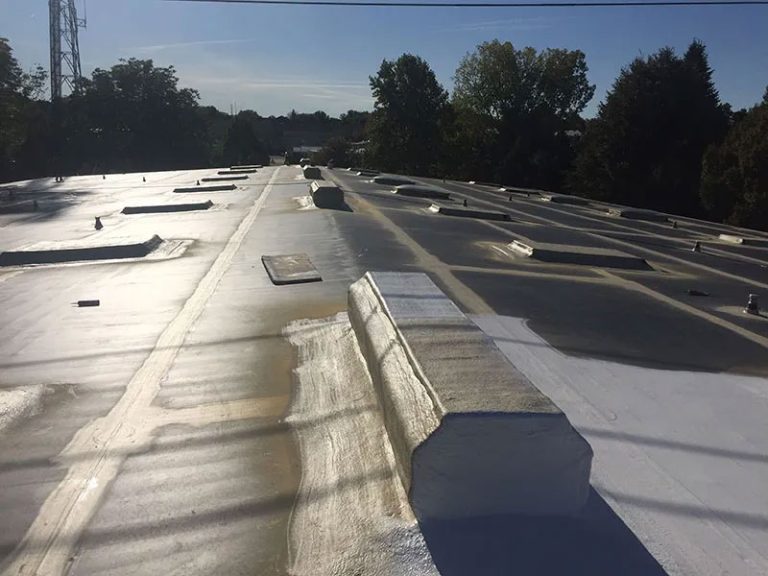

Membrane Restoration MR System on Existing EPDM Roof in Erie, PA

We applied Conklin’s Membrane Restoration System on this commercial EPDM roof in Erie, Pennsylvania. The roof surface was washed, cleaned, and primed. Then we applied spray foam to all protrusions, reinforced all seams with fabric embedded in base coat, and applied an acrylic top coat with 85% reflectivity. The finished roof is seamless, more energy efficient, and covered by a 10-year renewable warranty!

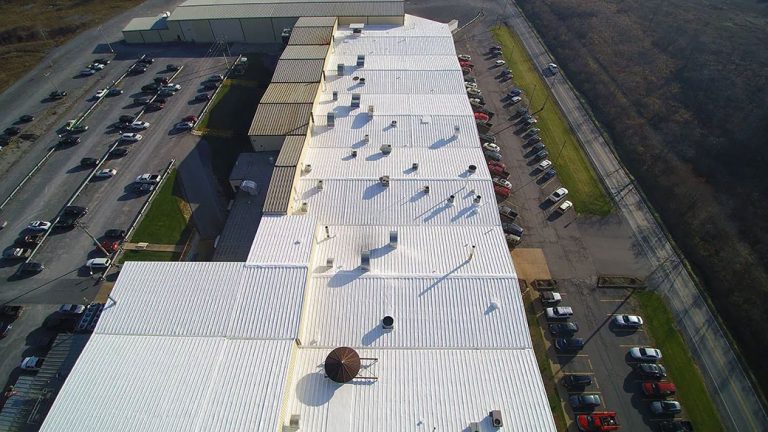

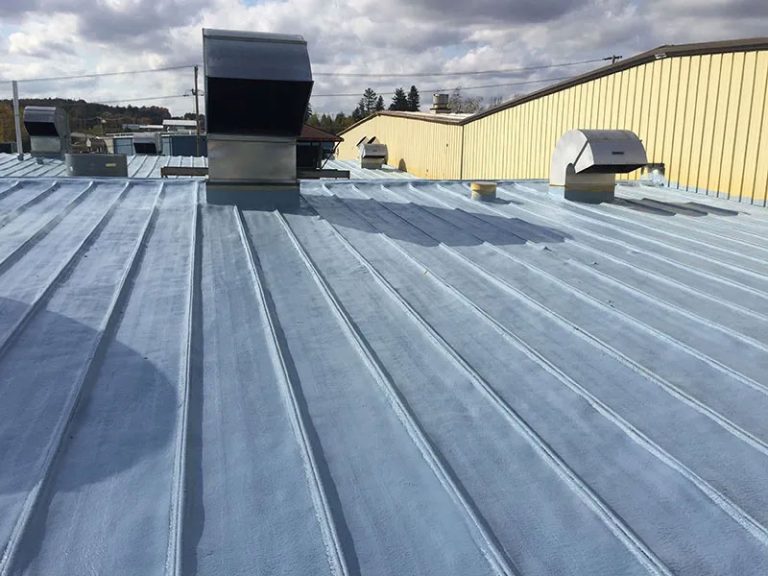

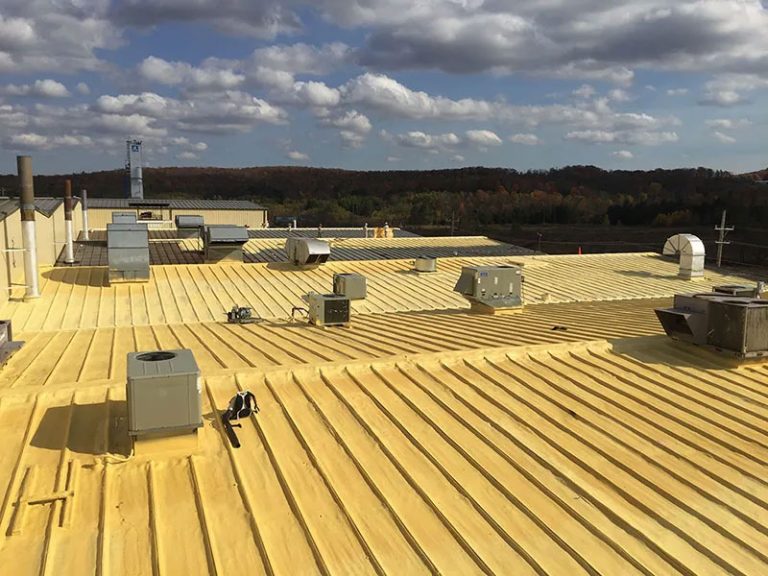

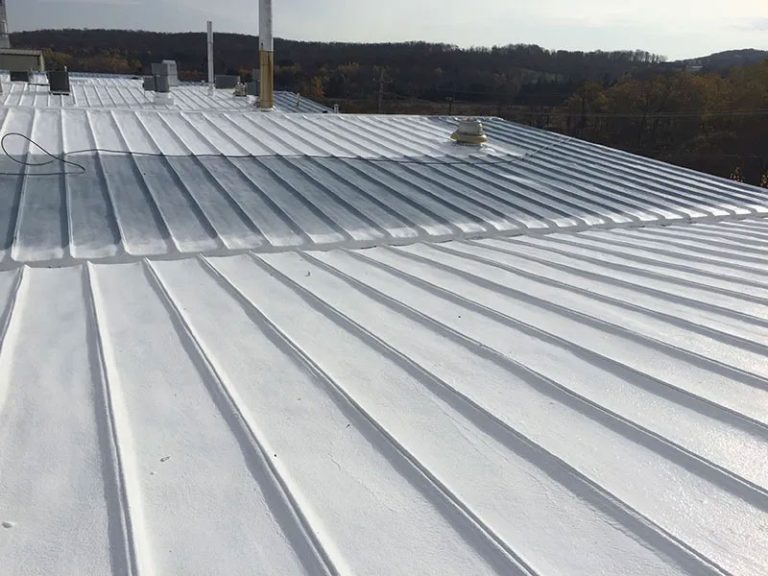

Standing Seam Metal Commercial Project in St. Mary’s PA

On this commercial project we applied the foam system (SPF) to an existing standing seam metal roof. We then applied a base coat, a top coat, and waterproofed the gutters with Conklin’s Affinity coating. This monolithic foam system provides approximately 85% reflectivity, resulting in energy savings in the summer and winter.

Ballasted Membrane Roof Restoration in Cochranton, PA

This was a ballasted membrane roof system in Cochranton, PA. We removed the old gravel layer and applied Conklin’s Spray Polyurethane Foam roofing system.

Ballasted Membrane Roof Restoration in Emporium, PA

This set was a ballasted membrane roof in Emporium, Pennsylvania. We took the gravel off and applied a Conklin Spray Foam system with base coat and top coat. This project is covered with an 18-year warranty.

Fabric Reinforced System in Cambridge Springs, PA

This set is a fabric reinforced system we did in Cambridge Springs, PA.

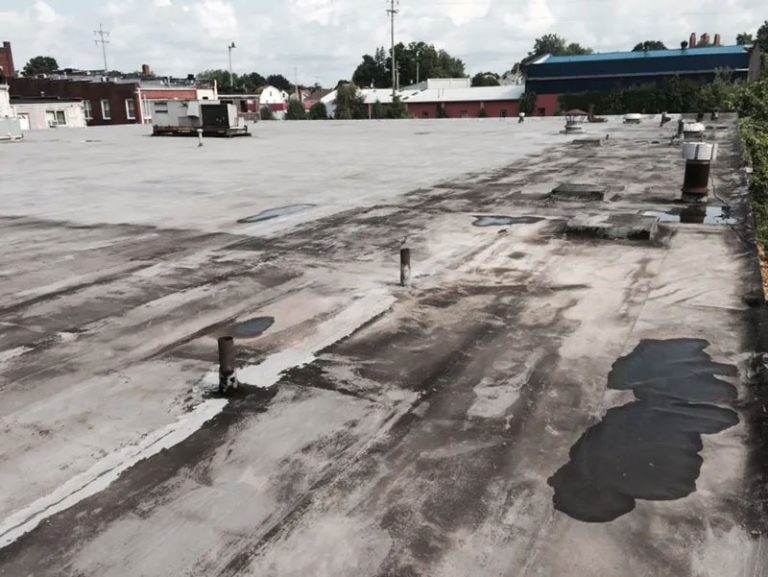

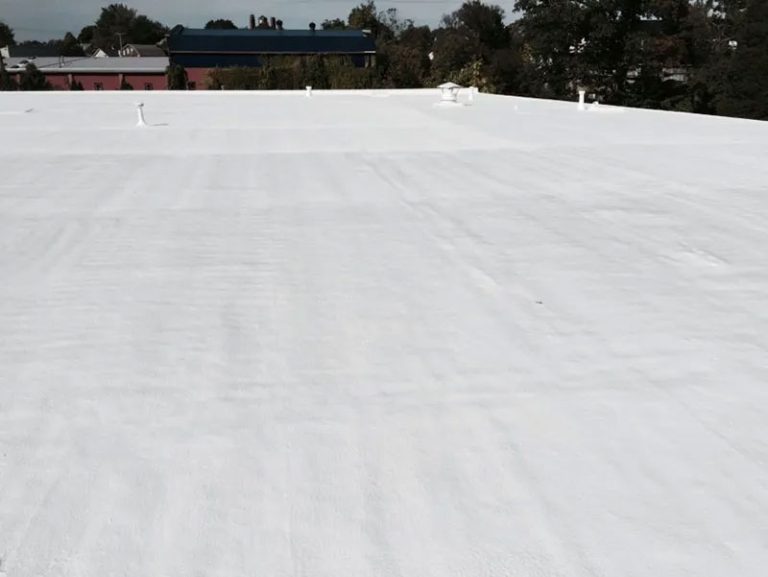

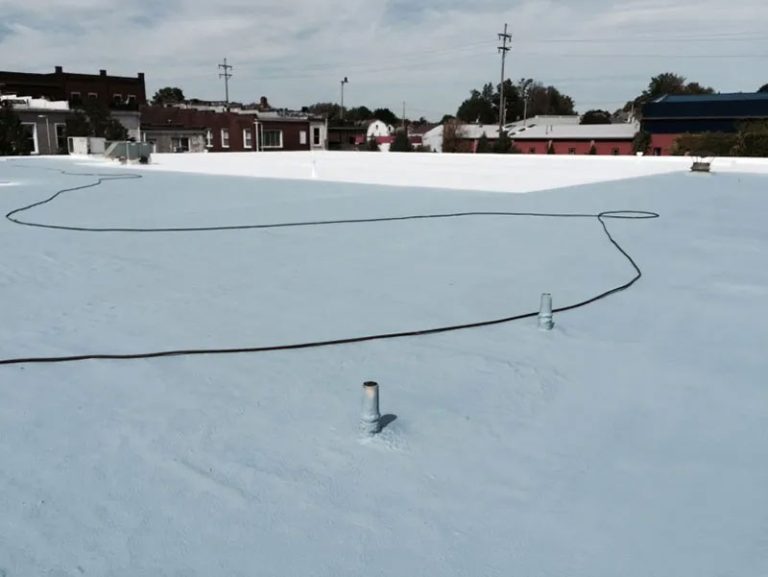

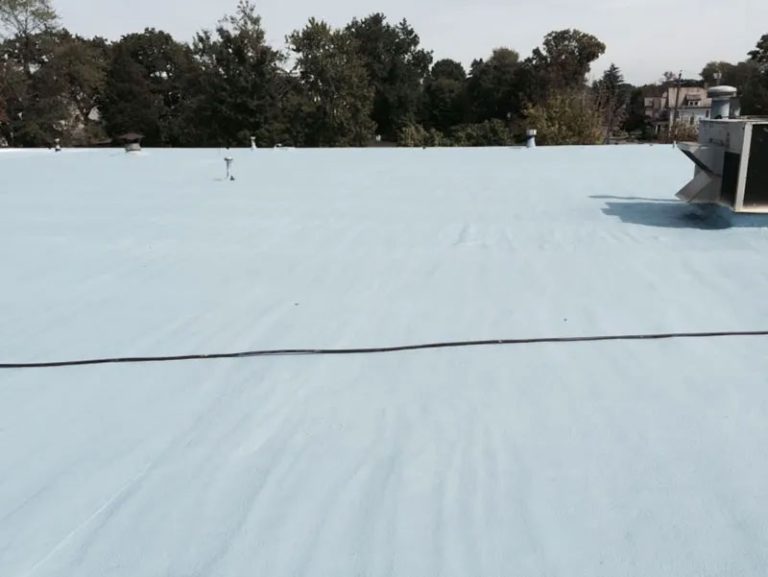

Foam System in Grove City, PA

This is a foam system we did in Grove City, Pennsylvania. We applied one inch of Conklin’s Spray Polyurethane Foam with a Benchmark base coat and a Puma XL top coat.

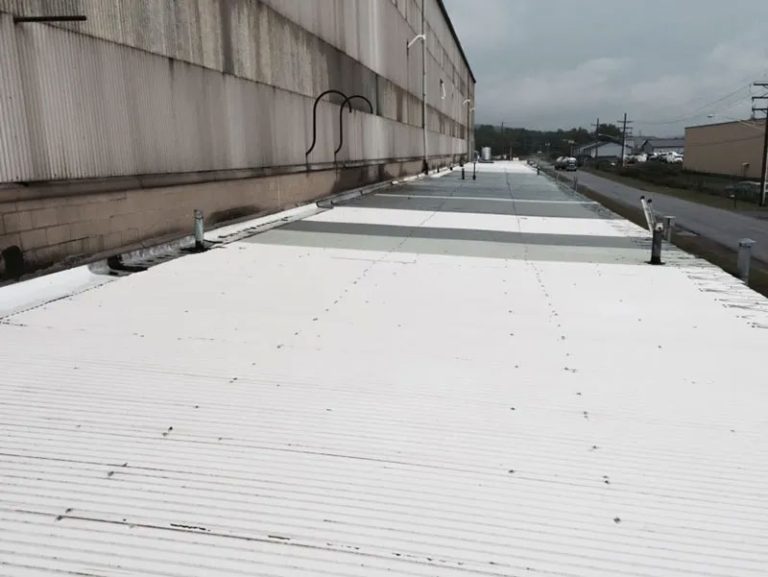

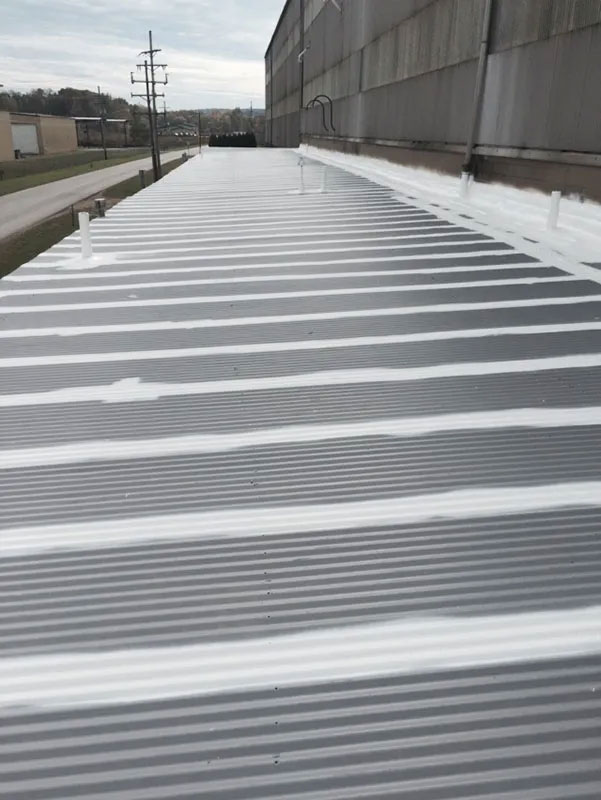

Metal Restoration in Meadville, PA

This set was a Metal Restoration System we did in Meadville, Pennsylvania. We foamed the flashing and sealed all the metal.

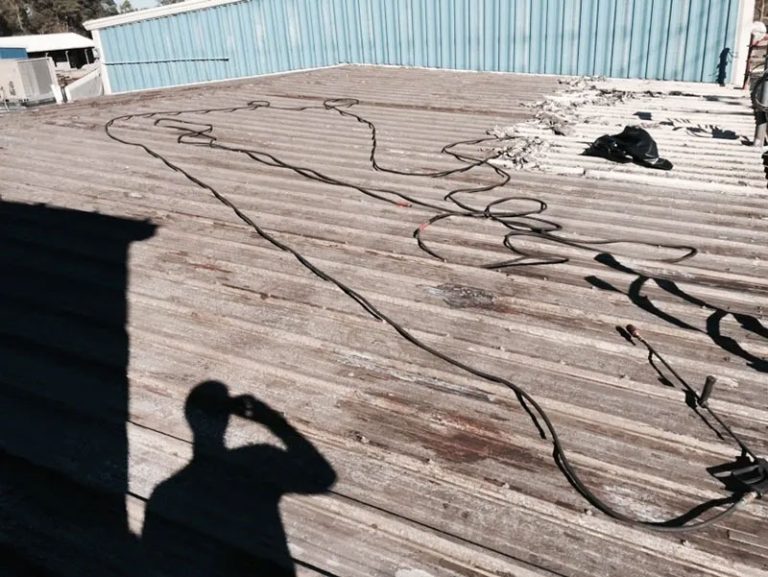

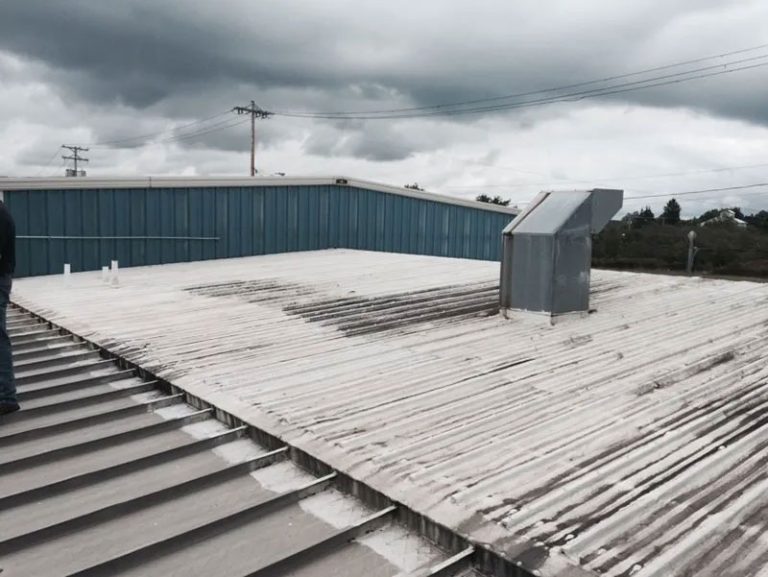

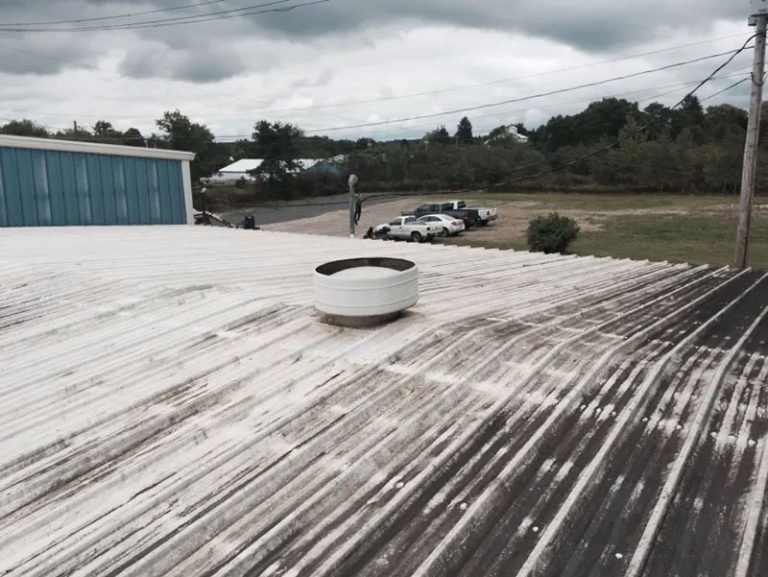

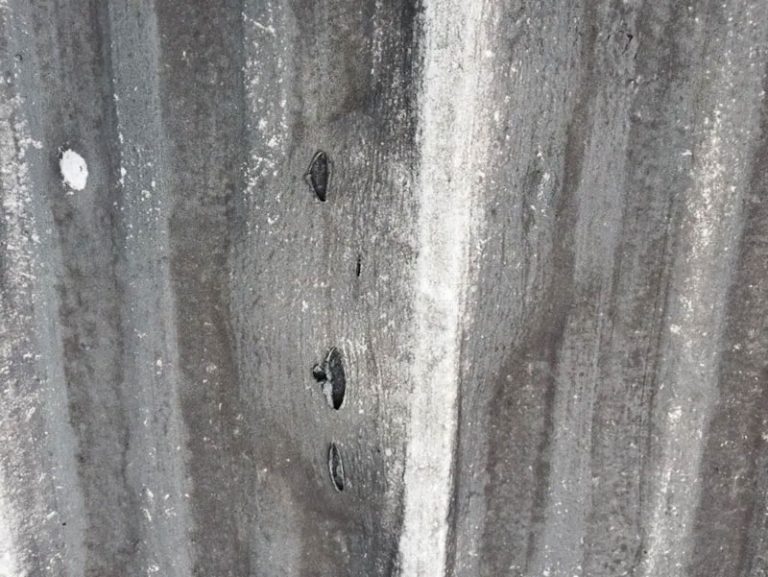

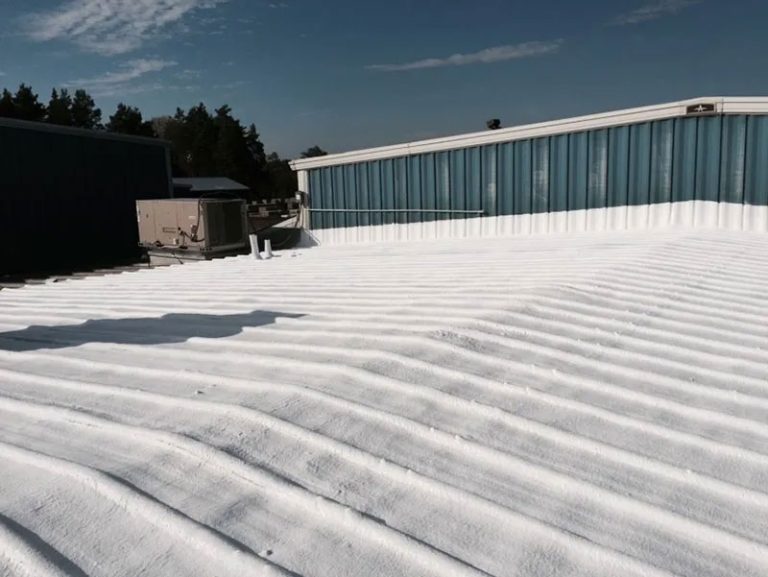

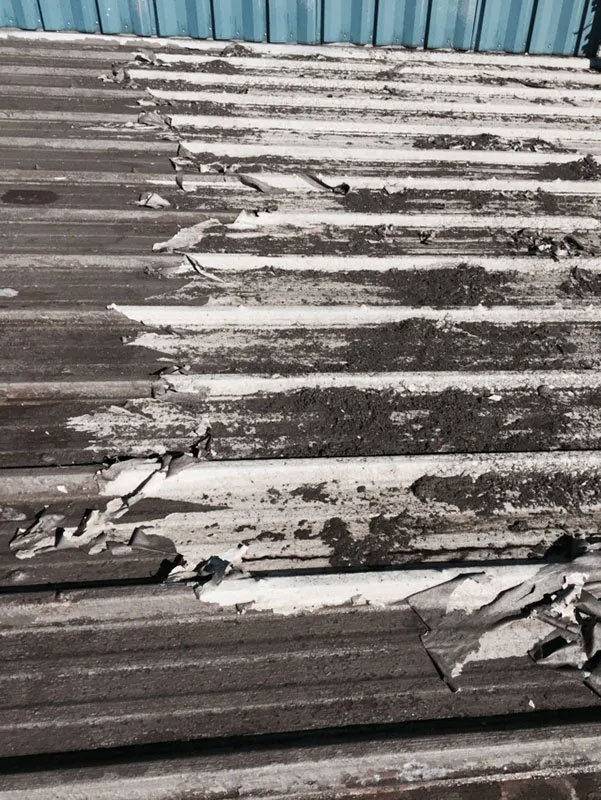

Foam System on Metal Roof in Cambridge Springs, PA

This was a metal roof in Cambridge Springs that had coatings improperly applied over aluminum coating ten years prior and it had started peeling loose. We pressure-washed the entire roof down to the original metal and applied a Conklin foam system with an eighteen-year warranty.
